Sql Server Reporting Web Based Tools Easy for Beginners

Introduction

SSRS is an extensive tool that provides a wide array of posting and security features that controls the access of reports. SSRS aids the ability to create reports in proper format with appropriate interactive elements and a functional dashboard.

Are you looking for a detailed understanding of SSRS? And if you are willing to make a rewarding career in the field even if you do not belong from a technical background you have found yourself the platform that will not only guide you in the most basic form about SSRS but also help you figure out the career path. This SSRS tutorial gives a complete insight on how to come up with a report having alluring visualization and interactive displays, and all intricacies of the SSRS Tutorial for Beginners.

Stay tuned to know more!

SSRS Tutorial objectives

The objectives of this fundamental guide of SQL Server Reporting Services (SSRS) is to make you familiar with the concepts like-

Create a project report
Set up a data connection
Define a query
Add a table data region
Formatting the report
Group and Total fields
Preview the report
Optionally publish the report

SSRS Tutorial prerequisites

To learn SSRS, there is no need to have advanced knowledge of the database. Learn some basics of SQL Server, especially SELECT statements .

System Requirements

To pursue further to take up this tutorial, your system requires the following components installed: -

MS SQL Server database engine
SQL Server Reporting Services 2008 or later (SSRS)
Microsoft Visual Studio
Reporting Services extension installed with MS Visual Studio to enable access to Report Designer

You can begin with SQL Server Self-learning, if you are not sure of joining any external training

Learn SQL Server in the Easiest Way

Learn from the videos
Learn anytime anywhere
Pocket-friendly mode of learning
Complimentary eBook available

What is SSRS in SQL server?

SQL Server Reporting Services is a feature given by MS SQL Server which is used to design, develop, test, and deploy reports. It is a server-based report generating system given by Microsoft which is a part of a suite of Microsoft SQL Server Services. The system is used to prepare and deliver a variety of interactive and printed reports. With the help of SSRS Tutorials, MS Visual Studio gets an interface so that developers and SQL administrators may connect to SQL databases and use SSRS tools to format SQL reports in many complex ways.

With SSRS, you can create formatted reports with the help of tables, graphs, and charts. SSRS reports are hosted on a server that can be executed anytime by using parameters.

Types of Reporting Services

Primarily, there are three types of reporting services.

Microsoft SQL Server Integration Services (SSIS): It integrates data from different sources
Microsoft SQL Server Analytical Services (SSAS): It helps in the analysis of data
Microsoft SQL Server Reporting Services (SSRS): It allows for generating a visual report of data

Read: Different Types of SQL Keys: Example and Uses

Why SSRS?

To make effective business decisions, users across the company need to have easy access to the informative and instinctual reports that combine data from many sources throughout the organization; this is where SSRS helps the organization with the conjunction of SQL Server databases. If your organization already has an Enterprise, Standard, or Express Edition, then you already have SSRS access to you. So, there is no need to shell out extra money for purchasing SSRS.

SSRS tutorials collaborate benefits of a centrally-managed reporting system with the flexibility and on-demand nature of reporting requirements including managed enterprise reporting, ad-hoc reporting, embedded reporting, and web-based reporting to allow organizations to deliver compatible information wherever it is required throughout the entire organization.

Benefits of using ssrs

Below are the amazing benefits of using SSRS, which will insist you to use SSRS for your organization: -

A). Easy To Install

SSRS is an inclusive reporting platform where reports are stored on a centralized web server. Reports in SSRS are centralized; that's why users can run reports from one place. Due to centralized reports, the installation of the report is very simple.

B). Easy Export Of Multiple File Formats For Further Analysis

Users can access and share reports in the format with which they are familiar, which includes formats like- HTML, PDF, CSV, XML, and TIFF. SSRS reports are also rendered using MS Office Word and MS Office Excel. The reports rendered using the MS Office package are editable and enable users to create SSRS reports and customized documents based on these reports.

C). Capability To Create A Reporting Portal

SSRS enables organizations to embed reports directly into business applications and web portals by allowing users to consume reports within the context of their business process. Here, organizations are capable of bringing overall business-critical data, which can be structured as well as unstructured across the company. The data is centralized at one proper location and provides one common experience for the access of information, which helps users to see the performance of key business information at a glance.

D). Create A Report Subscription That Runs Based On Your Timings

It is more important to learn how to create interactive SSRS reports than wondering how to create SSRS reports! SSRS supports standard as well as data-driven subscriptions that enable automatic delivery of reports to the right users by pushing them directly to each user through email. With SSRS tutorial step by step, users can use standard subscriptions to have reports delivered based on the schedule of a customer and specified values of the parameters of the report.

E). Interactive Sorting Capabilities

By implementing sort capabilities to a report, users become capable of sorting data by any of the columns of the report in either ascending or descending order. For example, a user viewing a report that contains a list of sales which might sort the data first by date, and then by sales amount.

F). Drilldown Reporting

With SSRS, users can seamlessly drill through any combination of data in the database without any programming or customization.

G). Instinctive Display Options

Every user has a different expectation and requirement while viewing and interacting with the reports. For this, an SSRS sample reports format that works well for one kind of data might not be appropriate for other types of data. SSRS supports a wide range of display options which enables to the creation of reports that display data in the most appropriate layout for the users including a list, chart, table, or matrix format.

H). Windows Security

Security of data is mandatory in today's world. SSRS provides enough security measures to safeguard the safety of the company's data. SSRS implements a flexible and role-based security model to protect reporting resources. This fortifies that every employee is allowed to access data based on the role to which the user is entitled.

Example of SSRS Reporting

Following is a short SSRS report tutorial-

1). Create a report server project

The first thing to do is to create a report server project because we will need this later for saving report definition files and any other files that you need for creating SSRS reports.

The first step is to open SQL Server Data Tools. Click on the File menu, find New and then Project . After this, you need to click on Business Intelligence . Click on the Reporting Services and then Report Server Project . If you want to display the Report test project to get you started, you can type Report test in Name . The last step is to click OK to finish.

Create a report server project

2). Create a new report definition file

In the View menu find the Solution Explorer and then right-click on the Reports folder. In the Add section click New Item. In the window Add New Item, click Report. As you can see, Report Designer has two available views. In Design view, you define your report layout, and in the Preview view, you can run your report.

3). Defining Data Source & Dataset

Setting up a connection

To retrieve data from a database or some other resource, you will need to define the data source. In the following section, you will see how you can define the data source. We will use AdventureWorks2012 database as an example.

Read: Top 75 Interview Questions For SSAS

In the View menu find and click Report Data, then New and after that Data Source. Type AdventureWorks2012 in the field Name. Select Embedded connection As Type select Microsoft SQL Server. In Connection string field type:

Data source=localhost; initial catalog=AdventureWorks2012

Setting up a connection

Read: Introduction to Stored Procedures and its benefits

Note: If the database is not on the local computer, replace localhost with the name of your database server instance.

After this, click on the Credentials and then Use Windows Authentication. Click OK, and you're done.

Setting up a connection 2

4). Define a T-SQL query for report data

You will need some basic SQL knowledge to create a query and define what information you will need from your database. The query you will see is just an example, and for your own purposes and database, you will have to change that step.

Read: What is Composite Key in SQL? Composite Primary & Foreign Key Explain with Example

In the Report Data pane find and click New, and then Dataset. In the Dataset Properties dialogue box as Name type DataSet1, Make sure to check to Use a dataset embedded in my report. Then select AdventureWorks2012 as your data source, Check Text as a Type, and type this into the Query input:

          SELECT    soh.OrderDate AS [Date],    soh.SalesOrderNumber AS [Order],    pps.Name AS [Subcat],    pp.Name as [Product],    SUM(sd.OrderQty) AS [Qty],    SUM(sd.LineTotal) AS [LineTotal] FROM Sales.SalesPerson sp INNER JOIN Sales.SalesOrderHeader AS soh       ON sp.BusinessEntityID = soh.SalesPersonID    INNER JOIN Sales.SalesOrderDetail AS sd       ON sd.SalesOrderID = soh.SalesOrderID    INNER JOIN Production.Product AS pp       ON sd.ProductID = pp.ProductID    INNER JOIN Production.ProductSubcategory AS pps       ON pp.ProductSubcategoryID = pps.ProductSubcategoryID    INNER JOIN Production.ProductCategory AS ppc       ON ppc.ProductCategoryID = pps.ProductCategoryID GROUP BY ppc.Name, soh.OrderDate, soh.SalesOrderNumber, pps.Name, pp.Name,soh.SalesPersonID   HAVING ppc.Name = 'Clothing'

Define a T-SQL query for report data

Note: soh, pps, sd, pp, PPC are just shorter names for tables that we have in AdventureWorks2012 database.

How To Add A Table And Fields To A Report Layout

After finishing with previous technical details, we can start with more interesting things, like designing your first SSRS report. This part is easy because instead of writing code, you can drag-and-drop graphic icons into the report format. This section will show you how to add Table and Fields to your report.

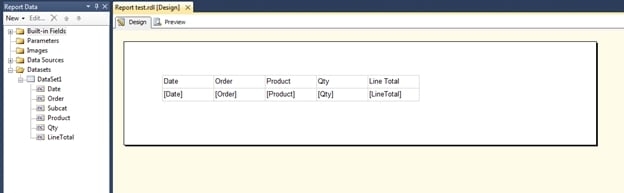

In the View menu click Toolbox, then find and click Table and drag the mouse to the design area. In the left pane, you can expand the dataset Dataset1 to see all the fields. Drag one of the fields (e.g., field Date) from Report Data to the column in the table. You can continue adding fields; table will automatically add more columns.

How To Add A Table And Fields To A Report Layout

Preview report

If you want to preview your report to see how it all looks, to correct errors, to correct issues, or to verify design and data connection, click tab Preview.

Tips and tricks

An easier way to add a table is to right-click on the design surface, click Insert, and then click Table.

Read: Comprehensive Guide on Microsoft SQL BI Developer Job Responsibilities

How to format your Report

Format currency and date

If you want to format Date field to show only the date, follow the steps below:

In the Design tab, right-click the desired cell, then click Text Box Properties. Find and click Number, then in the field Category click Date. As Type select date format you want, and click OK to finish.

Format currency and date

If in your table you have a field that holds information about currency, but you only see ordinary numbers, you can format that field to display a number as currency:

In the Design tab, right-click the desired cell, then click Text Box Properties. Find and click Number, then in the field Category click Currency. In accordance with your needs, you can change defaults. Click OK to finish.

Format currency and date

Changing column width and text style

You also have an option to change text style (font, size, etc.), and to change the column width. Column width you can change by simply dragging the columns to the desired size.

Text style you can change by clicking the Format menu. In the Format menu find Font, then click whatever you need (bold, italic, etc.)

Adding Grouping

If you want to make data set in your SSRS report, do the following:

Click the Design tab, and then choose pane Row Groups. Drag the field you want to group to the pane Row Groups. From your report pane drag some other field you want to group. Delete the old columns to the double line. If new columns need to be formatted , just right-click the cell and then click Text Box Properties, the next steps are the same as in the formatting report section.

Adding Grouping

Tips and tricks

You can do the same by right-clicking on the surface and clicking View, and then Grouping.

Read: SQL Server Reporting Service: All You Need to Know about Parameterized Reports

Adding Totals

Total is the sum of numeric, non-null data in the data region, and if you want to add totals for a group, you can do that by clicking Add Total for the group in the Grouping pane, and if you want to add totals for an individual cell just click Add Total for the cell.

Add a daily total and grand total
Right-click the cell [Order] and choose to Add total, then click After.
Type Daily to format a new name, Daily Total
After that, select the new cell [Daily Total], two Sum cells, and the empty cell you see between them.
In the Format menu, choose a background color. We chose the color orange.

SSRS Reporting -Adding totals

Right-click the cell [Date] and choose to Add total, and then After.Type Grand to format a new name, Grand Total. Select the new cell [Grand Total], the two [Sum] cells and the empty cell you see between them. In the Format menu, choose a background color. We chose the color light-blue.

SSRS Reporting - Adding totals 2

Tips and tricks

After you add the total, you can change the default function Sum. There is a list of different functions you can use (avg, count, etc.).

Publish your report to the report server

Finally, when you finished creating your first SSRS report, you may want to publish the report:

In the Project, menu clicks Test report Properties. Put your report server's name in the field TargetServerURL, then click OK. In the Build, menu, click Deploy Test report. You will get a message that indicates whether you have successful or unsuccessful deployment.

Note: A problem will have occurred if you don't have permissions on the report server or if you have been using SSDT with administrator privileges.

Most Common Problems

The most common problem in publishing the report to the report server is configuring the target server URL.

The first step that you need to do in the configuration is to launch the SQL Server Reporting ServiceConfiguration Manager and connect to the Reporting Service.

SSRS Reporting - Most Common Problems

After that in the section Web Service URL, you can find URL to the report server.

SSRS Reporting - Most Common Problems 2

In the section Report Manager URL, you can see the URL for viewing and managing reports.

SSRS Reporting- Most Common Problems 3

In the Project, menu open the Test report Properties.

Note: Prefix "Test report" is the name of your report.

The final step in configuring the target server URL is to fill the Web Service URL in the TargerServerURL property with the correct URL that you find in the Report Manager URL.

SSRS Reporting

Congratulations, you have successfully created your first SSRS report!

Features of SSRS

Following are the features available in SSRS based upon the versions:

Feature	Enterprise	Standard	Web	Express with Advanced Services	Developer
Mobile reports and analytics	Yes				Yes
Supported catalog database SQL Server edition	Standard or higher	Standard or higher	Web	Express	Standard or higher
Supported data source SQL Server edition	All SQL Server editions	All SQL Server editions	Web	Express	All SQL Server editions
Report server	Yes	Yes	Yes	Yes	Yes
Report designer	Yes	Yes	Yes	Yes	Yes
Report designer web portal	Yes	Yes	Yes	Yes	Yes
Role-based security	Yes	Yes	Yes	Yes	Yes
Export to Excel, PowerPoint, Word, PDF, and images	Yes	Yes	Yes	Yes	Yes
Enhanced gauges and charting	Yes	Yes	Yes	Yes	Yes
Pin report items to Power BI dashboards	Yes	Yes	Yes	Yes	Yes
Custom authentication	Yes	Yes	Yes		Yes
Report as data feeds	Yes	Yes	Yes	Yes	Yes
Model support	Yes	Yes	Yes		Yes
Create custom roles for role-based security	Yes	Yes			Yes
Model item security	Yes	Yes			Yes
Infinite click through	Yes	Yes			Yes
Shared-component library	Yes	Yes			Yes
Email and file share subscriptions and scheduling	Yes	Yes			Yes
Report history, execution snapshots, and caching	Yes	Yes			Yes
SharePoint integration	Yes	Yes			Yes
Remote and non-SQL data source support	Yes	Yes			Yes
Data source, delivery, and rendering and RDCE extensibility	Yes	Yes			Yes
Custom branding	Yes				Yes
Data-driven report subscription	Yes				Yes
Scale-out deployment (web farms)	Yes				Yes
Alerting (SSRS 2016)	Yes				Yes
Power view (SSRS 2016)	Yes				Yes
Comments	Yes	Yes	Yes	Yes	Yes

How SSRS works?

Report users who work with data or want some insights from data send a request to SSRS Server.
SSRS Server looks for metadata of the report and send a data request to the data resources.
Data source returns the requested data, and it is merged with the report definition into a report.
When the report is generated, it is returned to the client.

SSRS Architecture

SSRS has six primary components:

Report Builder: This is used to design a report using drag and drop functionality. It is an ad-hoc end-user report publishing tool that is executed on a client computer.
Report Designer: This is used to develop simple and complex reports. This is a publishing tool that is hosted in Business Intelligence Development Studio (BIDS) or Visual Studio.
Report Manager: This tool provides access to web-based reports. The default URL of Report Manager is http:///reports
Report Server: It's a server that uses a SQL Server database engine to store metadata.
Report Server Database: It stores metadata, resources, report definitions, security settings, delivery data, etc.
Data Sources: Reporting services retrieve data from data sources like relational and multidimensional data sources.

Reporting Life Cycle

Read SQL Server Views - Everything You Should Know

Authoring- It is the process of creating and publishing reports. Two primary methods are involved: end-user-developed reports and report analyst-developed reports. End-user-developed reports require a much simpler interface which needs to create report layout and formatting so that end-users understand the underlying data. Report analyst-developed reports, on the other hand, generally consist of a more robust report authoring environment and require a better understanding of how to query the underlying data source.
Management- After the Development of the report, the report lifecycle moves to the management phase. This phase includes setting properties that allow end-user access and take into consideration of different environments.
Delivery- The final delivery phase consists of end-users accessing reports. This includes two common delivery concepts for accessing reports: push delivery and pull delivery. Push delivery consists of reports being sent to the end-user which include e-mails, files moved to a file share, or reports sent directly to a printer. The basic idea is that a report is executed on a given schedule, and when completed, it is sent to the user. Push delivery consists of the end-user accessing some sort of application containing reports.

What is RDL?

It is abbreviated as Report Definition Language. It is an XML representation of SSRS report definition and is composed of XML elements that match an XML grammar created for reporting services. In short, RDL is-

An XML schema for report definitions
An interchange format for business and third parties
An extensible and open schema that supports additional namespaces and custom elements

Types of SSRS reports

There is a total of 9 types of SSRS reports: -

Types of SSRS Reports

1). Parameterized Reports

These types of reports use input values to complete the report. With these reports, you may differentiate the output of a report based on values that are positioned when the report runs. These reports are frequently used for drill-through reports, linked reports, and subreports for connecting and filtering reports with related data.

2). Linked Reports

It is a report server item that provides an access point to an existing report. Ideally, it is similar to a program shortcut that you use to run a program. When you install a software program in your system or create a Java application, you don't open the whole folder, but you will only run the '.exe' file to run the application, whether it is a software program or a Java application. Linked reports are the same. Linked reports can be created on the report server when you want to create an additional version of an existing report. For example, a single regional sales report can be used to create region-based reports for all your sales enclaves. You can create linked reports whenever you want to install an existing report with different settings.

3). Snapshot Reports

It is a kind of report that contains information of the report layout and query results that were redeemed at a specific point in time. Snapshots report are processed on a planned schedule and then it is saved on a report server database and shows the current layout and data of the report at the time the snapshot was created.

There is no specific rendering format of the snapshot reports but the final view of the report is viewed after the request of user in the following formats-

HTML (XHTML)
Excel
Acrobat
Tiff (image)
XML
CSV

Snapshot reports serve three purposes: -

Report History (to build a history of the report that shows amendment of data performed over time)
Report Consistency (to provide consistent results for multiple users who must work with identical sets of data)
Report Performance (to schedule the report time to run reports during off-peak or on-peak hours)

4). Cached Reports

It allows you to create a copy of the processed reports. It is used to improve performance by minimizing the number of processing requests to the report processor and by minimizing the time required to retrieve large reports. These reports have a compulsory expiration time which is usually in minutes.

5). Ad-Hoc Reports

These reports can be created from an existing report model using a report builder. These reports refer to specifically to the report builder reports. These reports leverage report models and pre-defined templates to enable information workers to easily and quickly explore business data using familiar technology and data structures that have been implemented in the report model.

6). Clickthrough Reports

This report displays related data from a report model when you click interactive data carried within your model-based report. This is generated by the report server based on the information carried within the report model. These field settings cannot be modified in the report authoring tools. Clickthrough reports are autogenerated, but you can create customized reports as an alternative report to the model for interactive data items that are displayed on the screen. The customized report is a standard reporting services report.

7). Drilldown Reports

This report initially hides complexity and enables the user to toggle conditionally hidden report items to control the quantity of detailed data which they want to see. This report retrieves all possible data that can be shown in the report. [Note: for reports with a large amount of data, it is better to consider drill through reports.

8). Drillthrough Reports

This kind of report is accessed through a hyperlink on a text box in the original report. The report works with the main report and is the target of a drill through action for a report item such as placeholder text or a chart. The main report outputs summary information in the form of a matrix or chart. Actions defined in the matrix or chart provide drill-through links to reports that display larger details based on the aggregate in the main report. These reports can be filtered by using parameters. These are customized reports that are saved on the report server and open separately.

9). Subreports

This kind of report displays another report inside the body of the main report. Ideally, a subreport is similar to a frame in a webpage. As its name suggests, it is embedded within a report. Any report can be used as a subreport. It uses different data sources as compared to the main report. The subreport is stored on a report server usually in the same folder as the parent report. You may set up a subreport to pass parameters to the subreport. [Note: For reports with many instances of subreports, consider using drill through reports]

Advantages of using SSRS

Find below several advantages of using SSRS: -

Microsoft SSRS is free if you have Microsoft SQL Server, which is why so many companies use it. (However, the "free" price doesn't include development time.)
Microsoft SSRS is a very robust tool that Microsoft has invested a lot of development into. Users have access to enterprise-level features, including the ability to connect to many data sources and connectivity to Microsoft SQL, Oracle, Excel, and more. Sql reporting services tutorial is a course worth pursuing in today's scenario.
Unlike Crystal Reports, which is more of a desktop tool (unless you upgrade), Microsoft SSRS users can build, distribute, and access reports via the web.
Microsoft SSRS caters to developers, and it works with other developer programs, such as Visual Studio and ADO.Net.
Microsoft SSRS users can schedule reports to be delivered automatically out to users, which is helpful for users who run the same reports regularly.
Microsoft SSRS tutorials have a huge support community, not only from Microsoft but its plethora of users worldwide. Hence, learning SQL server reporting services is a skill set that adds value to the career.

Disadvantages of using SSRS

Find below several disadvantages of using SSRS: -

Depending upon who you are, this aspect of Microsoft SSRS can be a huge con. To get the most out of the tool, users must know SQL code and SSRS-specific functions. Microsoft SSRS is not easily usable for the average business user.
Microsoft SSRS can be resource-intensive to use and can take up a lot of your server's resources, especially when running large reports.
Extra work is required to build reports that run properly on mobile devices. SQL Server Mobile Publisher is required.
Microsoft SSRS 2016 provided a lot of improvements in the interface, allowing views to display properly in most modern browsers and removing Active X components. You can learn in detail about the improved interfaces in the SQL server SSRS tutorial. But the visualizations are still basic, and many are unable to upgrade due to the point below.
They made this process easier with SSRS 2016, but many companies start a conversation with us when they see the effort needed to upgrade their version of SSRS and want to explore better options.

Conclusion

SQL Reporting Services is a unified solution of report designing and data warehousing. You can create graphical and tabular data and also set the permission of access. The companies are aligning themselves with the SQL Reporting Services to streamline the business for better outputs.

With brighter prospects for the future, it is wise to go for an SSRS course to have a flourishing career. Join the JanBask SSRS courses and tutorials on YouTube to learn SSRS from scratch and discover exciting job opportunities.
